Botlr Label Applicator

https://youtu.be/3caz2F1ye-8

Good day to you, I’m your Botlr.

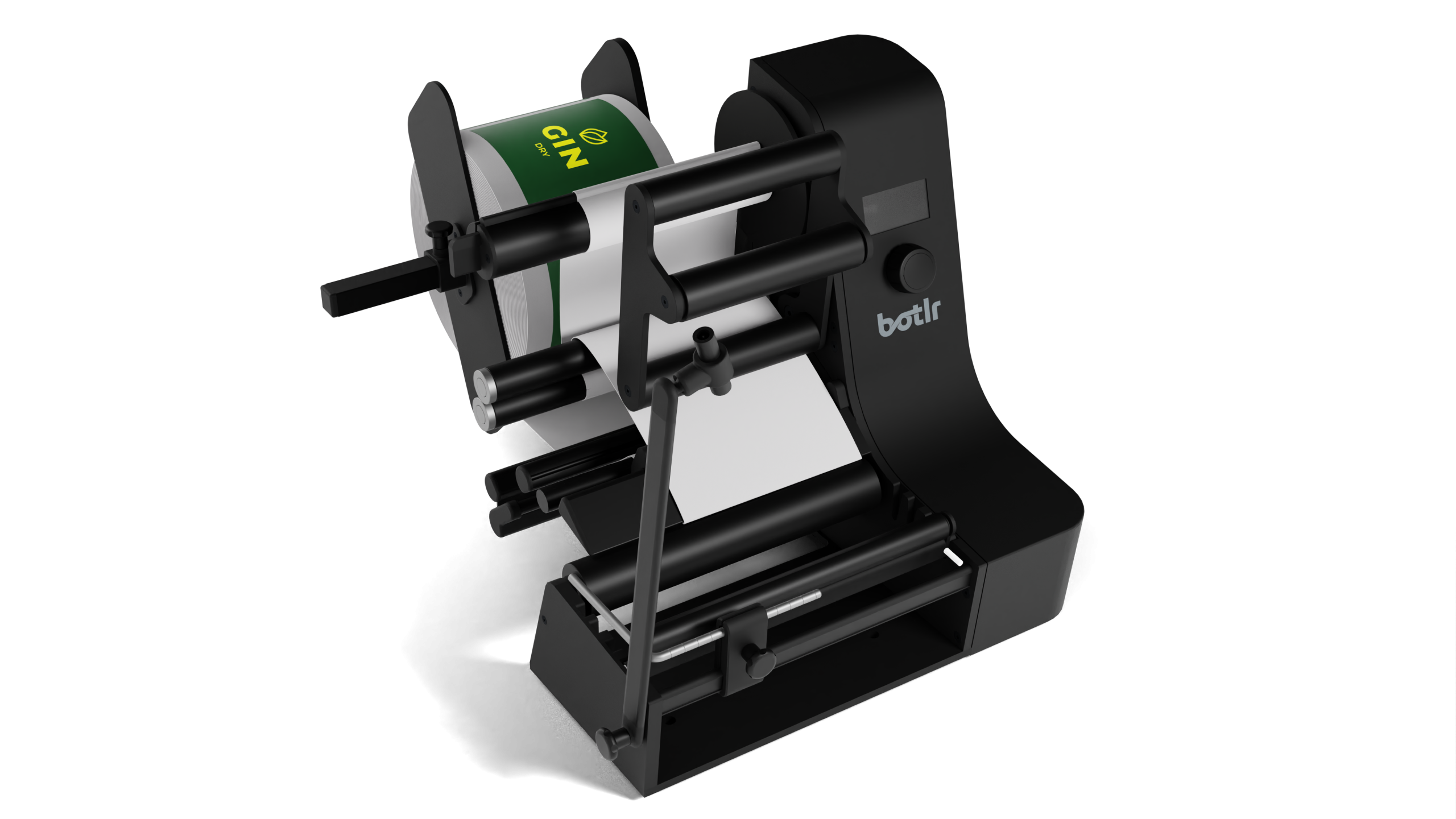

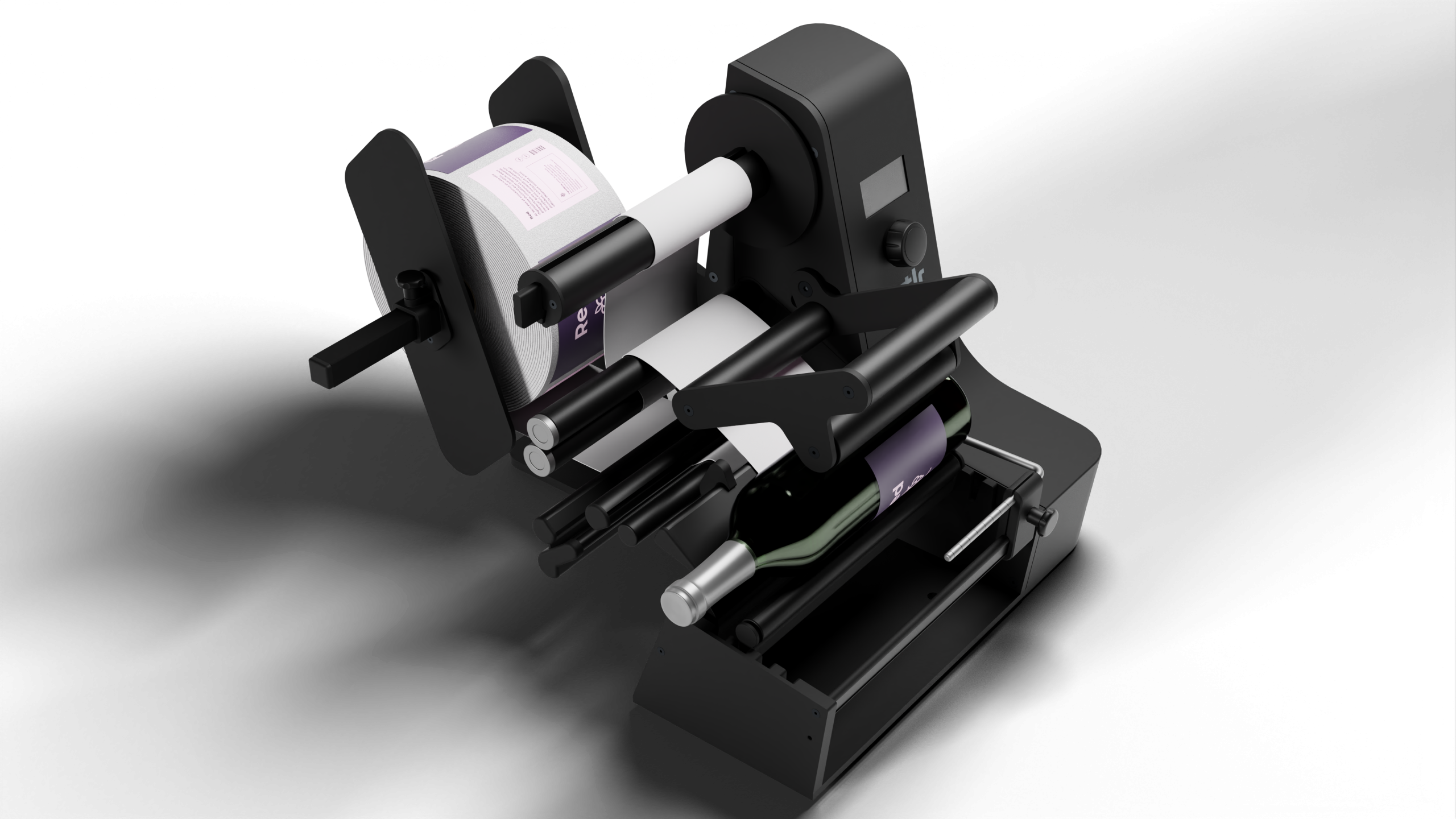

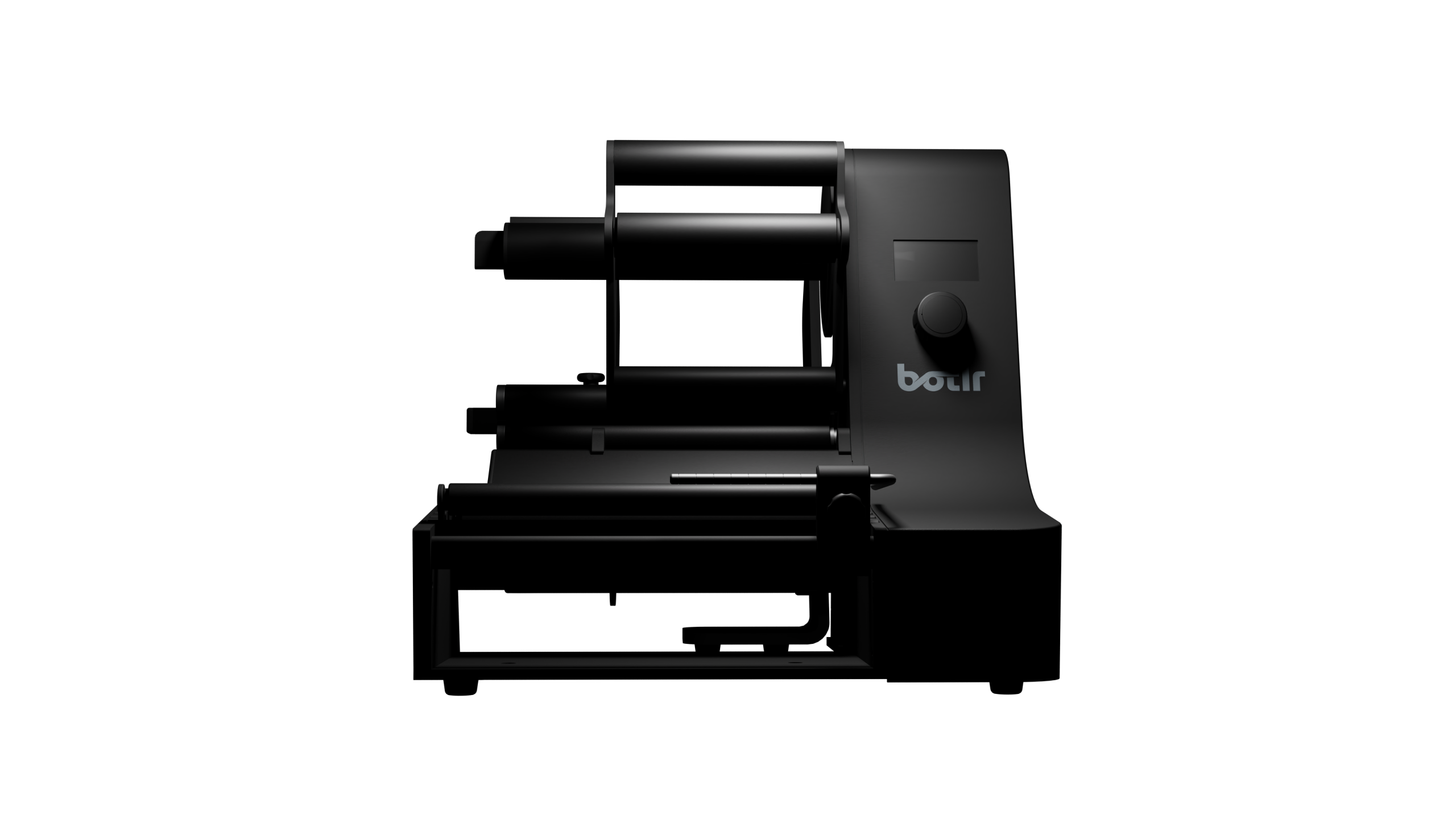

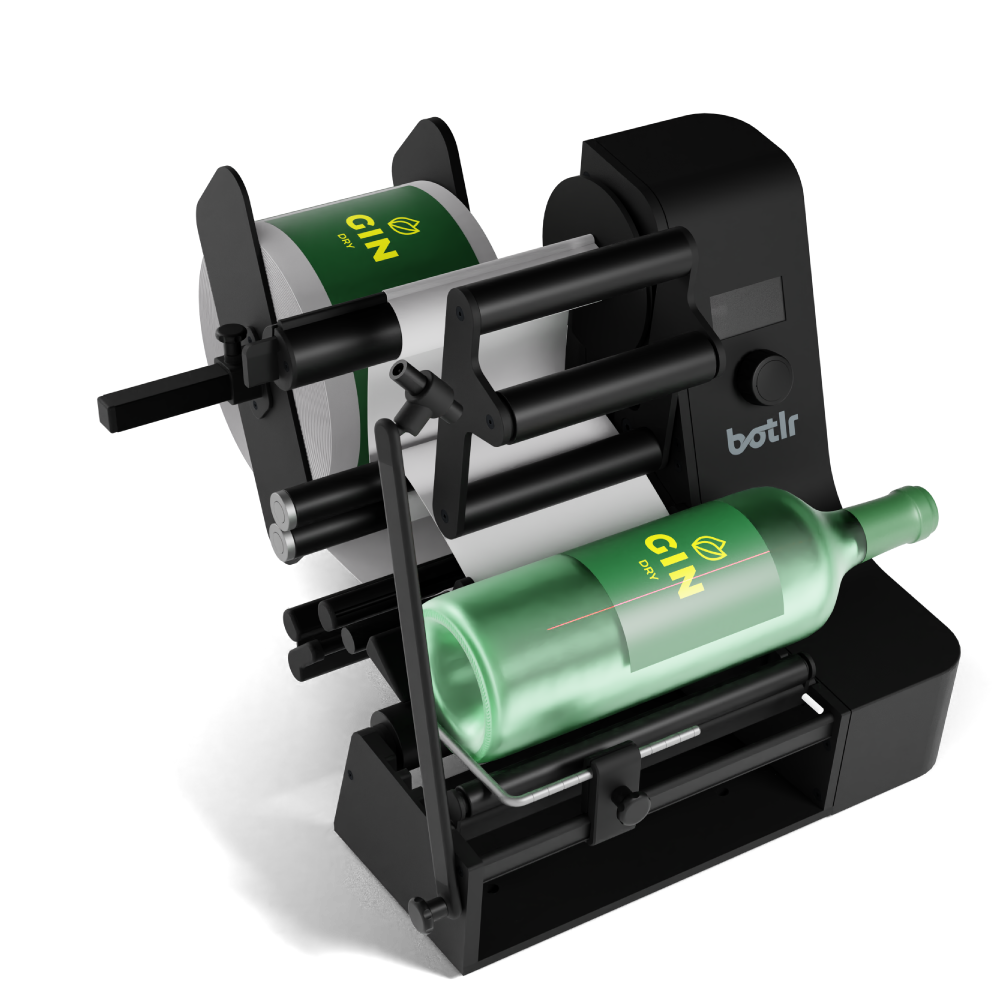

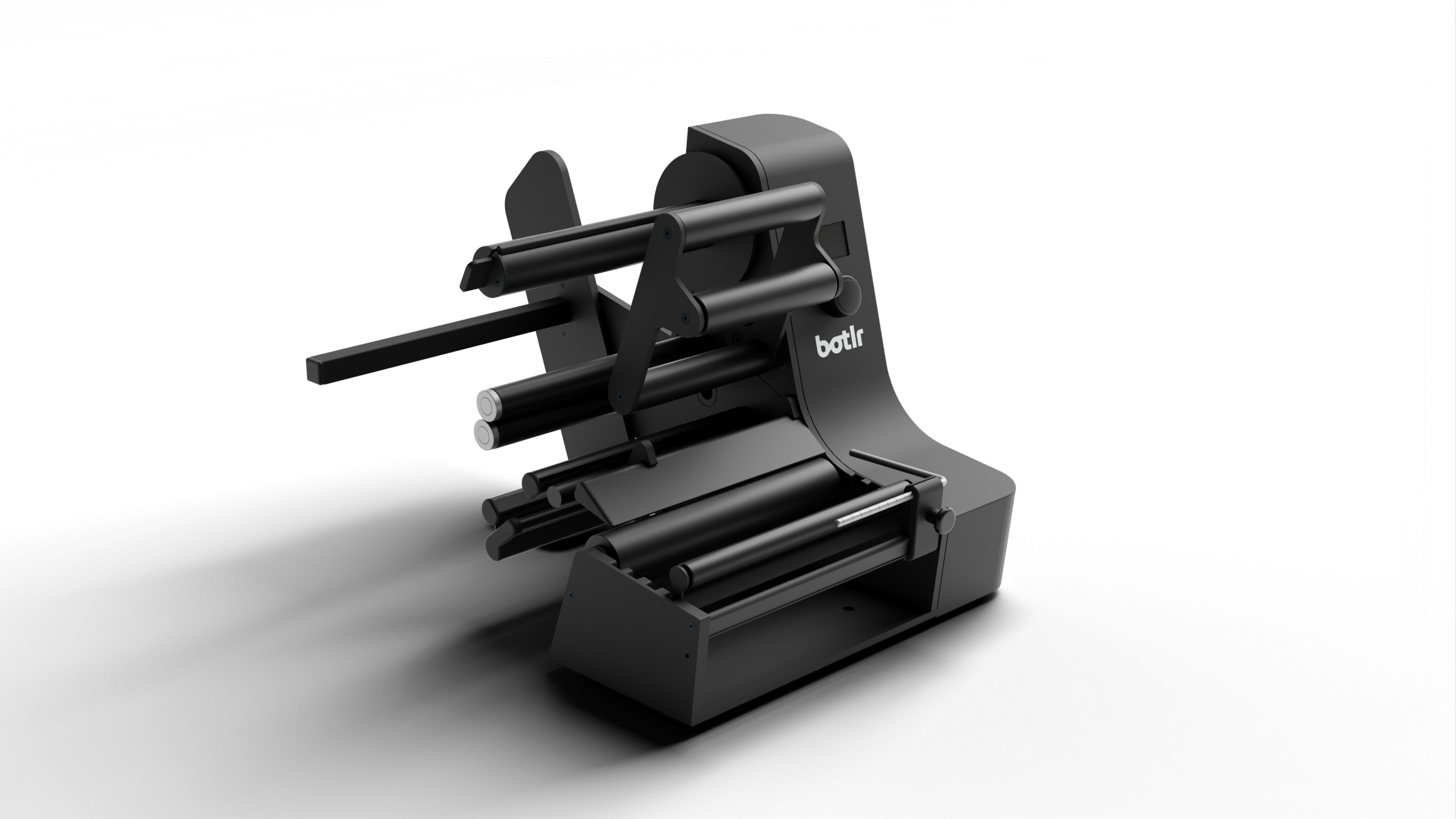

Labelmate Botlr Bottle applicator - The future of Labeling

Step into the future of labeling with the Labelmate Botlr, a groundbreaking bottle applicator inspired by the legendary Buttler. This incredible applicator introduces never-before-seen technology that will revolutionize the way you label your bottles.

Key features and benefits:

• Patented Technology: The Botlr automatically measures the diameter of your bottle and provides precise instructions for perfect label placement.
• Easy Switching: Whether it's bottles with a diameter of 13 mm to 120 mm, the Botlr effortlessly adapts to your diverse labeling needs in less than 2 minutes.
• Versatility: Whether it's transparent labels, labels of various sizes, or unique shapes and materials, the Botlr can handle it all effortlessly.

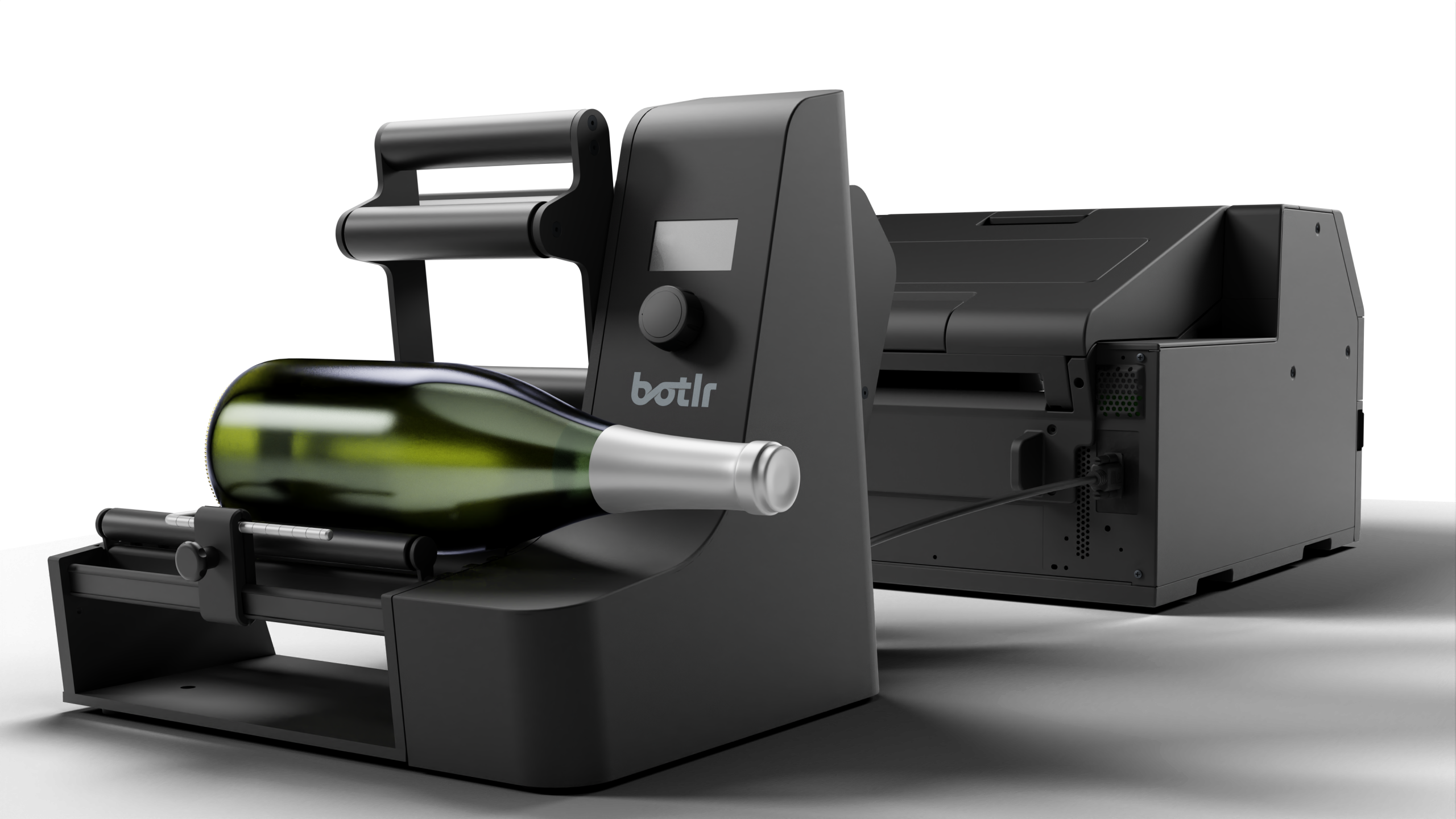

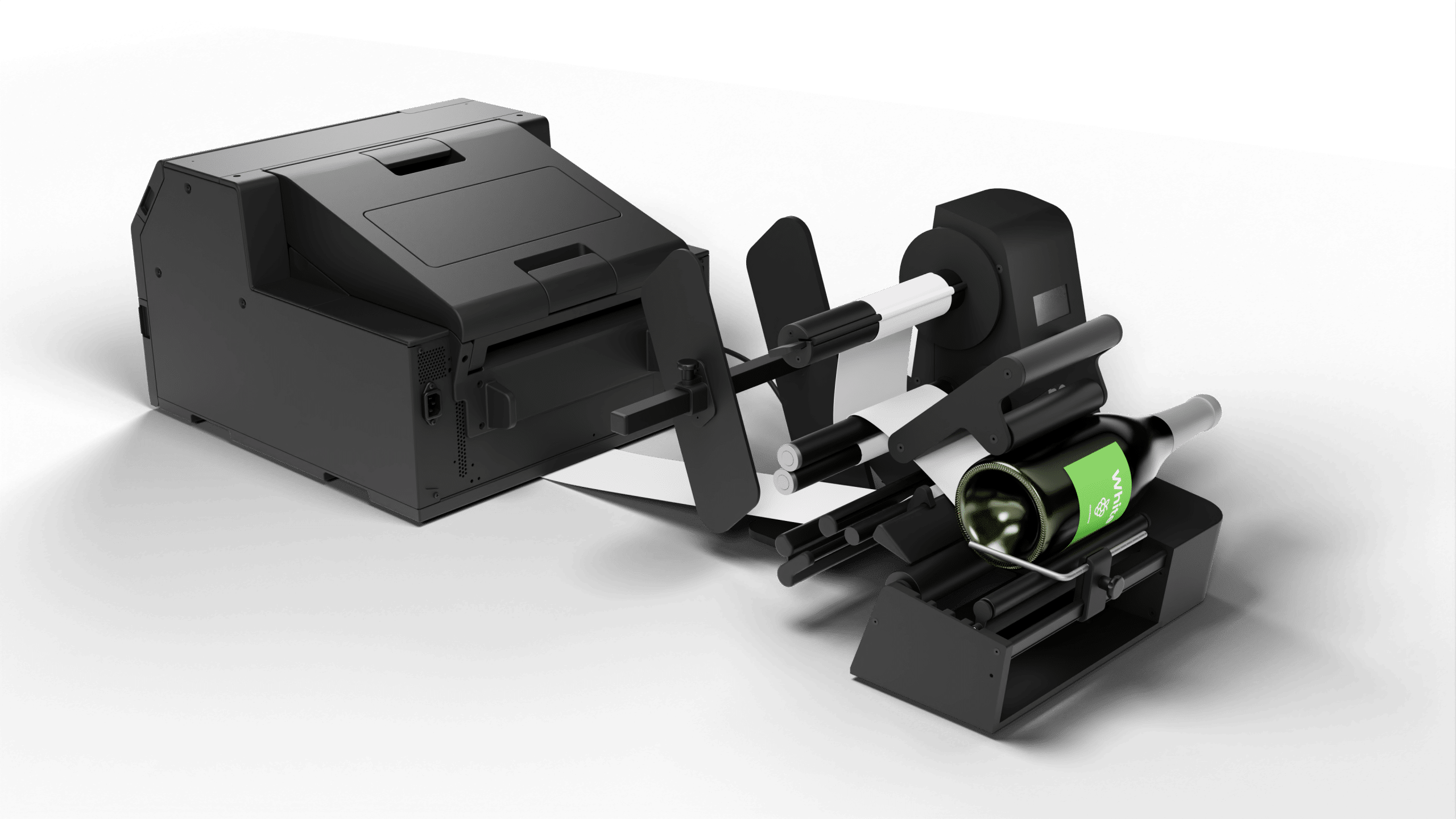

• Unique Connectivity: Seamlessly integrate the Botlr with your color inkjet or thermal transfer printer for a custom printing and application station.
• Intelligent Technology: The patented technology of the Botlr ensures flawless label positioning, even on wider closures.
• OLED Display: User-friendly instructions and configuration options are displayed on the Botlr's wide black-and-white OLED screen.
• Advanced Media Handling: Unmatched versatility with support for one or two labels, different openings, and labels of extraordinary shapes and thicknesses.
• High Throughput: Label up to 1,400 bottles per hour with precision and efficiency.

https://youtu.be/LXXzOJ6Fpks

The fairytale of Botlr & Sterkstokers Gin ????

Join us on a journey of innovation and efficiency as Sterck Stokers, a renowned Gin Distillery in Brecht, Belgium, shares their remarkable experience with Botlr. Sterck Stokers was one of the early adopters of this advanced technology, and their feedback played a crucial role in refining and perfecting the functionality and performance of Botlr.

Automatic 180 degrees label position

Have you ever wondered how to place labels perfectly on your bottles? Botlr has the answer! With its patented technology, Botlr calculates automatically and ensures that the second label is placed precisely 180 degrees opposite the first label or at any other desired location on your bottle. It's a game-changer for industries where precision in label placement is essential.

https://youtu.be/fpfpRWhJS6s
Specifications
In the box
Specifications

Sensors:
Unique label gap sensor
Plate roll sensor

Compatibility and Additions:
Laser tool
EPSON CW-C6000 series
EPSON CW-C6500

Supported Bottle Dimensions:
Minimum diameter: 13 mm
Maximum diameter: 120 mm

Label Capabilities:
1 or 2 labels
Transparent labels
Second label with different sizes on the same label roll
Two labels with different openings
Labels with unique shapes and thicknesses
Maximum label roll width: 240 mm
Maximum label roll diameter: 300 mm
Maximum label roll weight: 6 kg

Dimensions & Weight:
Height: 364 mm
Width: 376 mm
Depth: 533 mm
Weight: 14 kg

Power Supply:
Input 100-240V- 1.5A
Output 24V-DC-2.7A

In the box

Your Botlr
Usermanual
Powersupply
