ZX420i

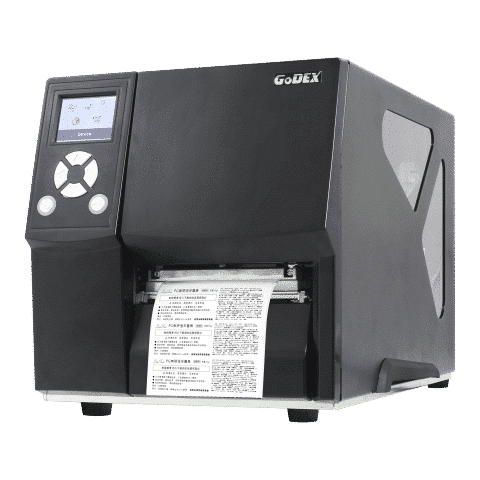

Godex ZX420i Thermal Transfer label printer

Godex is a manufacturer of very reliable and affordable label printers. This is reflected in the standard 5-year warranty on all mid-range and industrial label printers. Godex supplies the free software GoLabel with all label printers, a very powerful and extensive label printing software package that can only be used with the Godex printers.

A Godex ZX420i is a mid-range thermal label printer. The ZX420i is a very reliable and affordable label printer for applications where a desktop label printer is no longer sufficient. For example, the Godex ZX420i is often used for shipping labels and package labels on it moment when the Godex DT4x becomes too small.

Main features:

• Standard 5 year warranty (printhead excluded)
• Print resolution of 203 DPI
• Standard equipped with the following connections:
  • Ethernet connection
  • USB type B
  • Serial port, type: RS-232 (DB-9)
  • 3x USB host type A (for connecting USB stick or USB input devices such as hand scanner or keyboard)
• Print speed of 152 mm per second
• Print width up to 108 mm
• Convenient display for easy operation and error solving
• Prints both Thermal Direct and Thermal Transfer
• Automatic calibration function
• Metal chassis
• Use large labelrolls

Included with the Godex ZX420i

• Free Golabel software package
• Manual
• Drivers (CD)
• Power cable
• Main device
• Label roll
• Transfer ribbon
• USB cable

General information and explanation about the Godex ZX420i

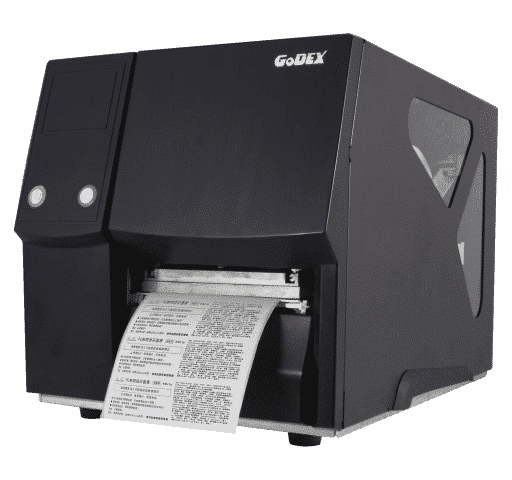

The Godez ZX420i is a very powerful and reliable thermal label printer with a very favorable price level. The relatively compact size of the printer makes the Godex ZX420i easy to place on, for example, a packing table. The greater roll capacity compared to the desktop label printer ensures that the change of label rolls and transfer ribbons is kept to a minimum, resulting in optimal continuity. The Godex ZX420i is part of the ZX4 * series which consists of 4 models and is the mid-range series of the industrial Godex ZX1000i series. For example, a budget version of the ZX420i is available. This budget variant, the Godex ZX420 ( without “i” < / em>), has no display and only has a single USB 2.0B connection. In addition, both variants are available as a 300 DPI model for barcode labels, the Godex ZX430 and the Godex ZX430i .

Within the Godex ZX4 * series, the Godex ZX420i is the most widely used printer with a print resolution of 203 DPI and a maximum speed of 152 mm per second. The Godex ZX420i is often used for many different and demanding applications. Examples are internal warehouse labels, transport labels, shipping labels, product labels and retail applications. The “ i ” in the type number stands for “ interface ” by which Godex refers to the printer’s display. This display provides extra convenience when operating and setting the label printer. In addition, it provides information about any faults or problems so that they can be resolved quickly. Godex also has the ZX420i available without a display, which is the Godex ZX420 (so without “i”), in addition to that many other extras have been removed. Businesslabels always advises to opt for the models with display as these models al much more user friendly.

The Godex ZX420i prints both Thermal Direct printer media and Thermal Transfer media using a Transfer ribbon (TT ribbons) . The Godex ZX420i uses TT ribbons with a core diameter of 1 inch (25.4 mm) and a length of up to 450 meters.

If the label printer is mainly used for barcode labels or other labels that are printed with small letters, for example, Businesslabels recommend choosing the 300 DPI variant, the Godex ZX430i.

Quality, trust and warranty

Godex proves with a standard warranty of 5 years on the mid-range and industrial printers that the label printers are of very high quality. The printhead warranty is limited to 6 months. The reason for this is that a thermal printer printhead like this is seen as a wear part and is relatively cheap and easy to replace. In addition, a thermal printhead is subject to wear determined by the label material used. The 5-year warranty applies to the entire printer and provides extra security, but above all a clear signal of confidence.

Available labels and other printer media

The Godex ZX420i can handle both Thermal Direct and Thermal transfer printer media with a roll width of up to 118 mm. In terms of roll size, the Godex ZX420i is extremely versatile because the printer can work with rolls on both small and large core. Business labels has an extensive range of printer media available, via the product finder it is easy to determine which printer media is suitable based on the printer. CLICK HERE for an overview of available printer media for the Godex ZX420i.
