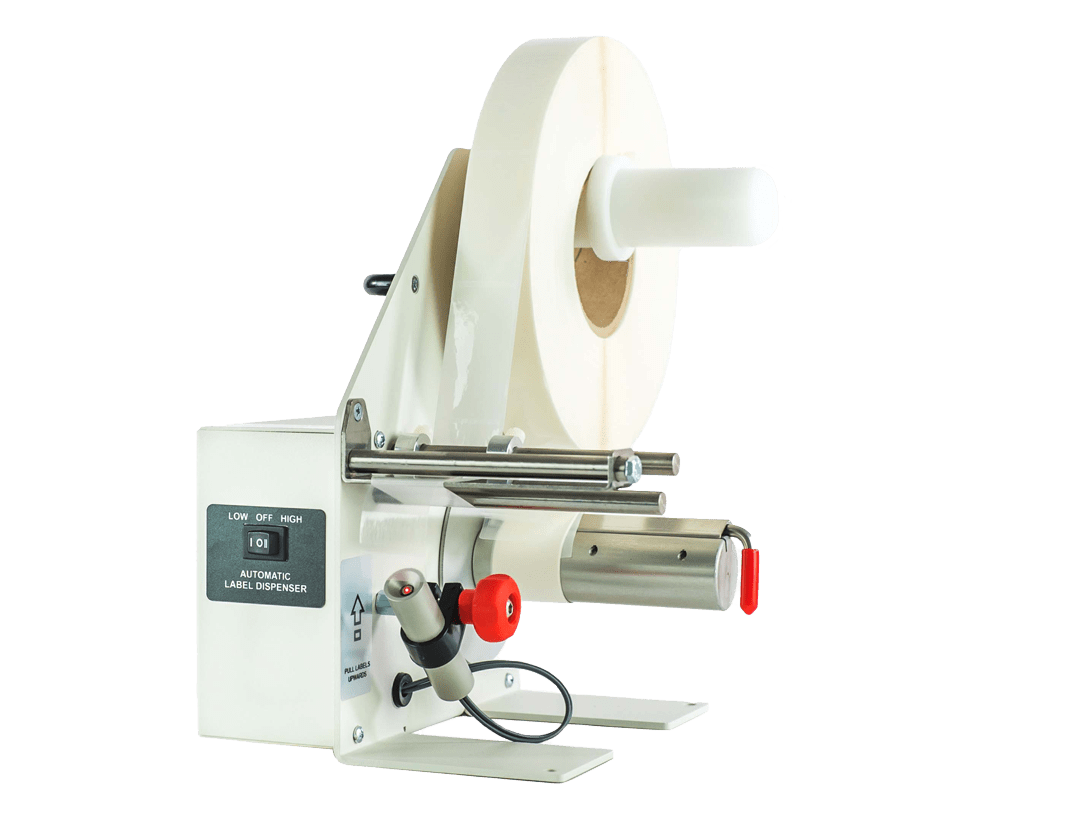

LD-100-U Label dispenser

Labelmate label dispencer for transparant labels

The Labelmate LD-100-U is a label dispenser that is suitable for transparent labels. The special photoelectric sensor is able to detect even the most difficult label materials. You can easily order Labelmate equipment via Businesslabels, you can always contact us if you have any questions.

577,00

Excl. TAX

698,17 incl. TAX

The Labelmate LD-100-U is a label dispenser that is suitable for transparent labels. The special photoelectric sensor is able to detect even the most difficult label materials. You can easily order Labelmate equipment via Businesslabels, you can always contact us if you have any questions.

DESCRIPTION

Labelmate LD-100-U label dispencer

The Labelmate LD-100-U is a label dispenser based on the standard version, the LD-100-RS. The difference between this version and the standard model is the sensor that is used. The sensor of this LD-100-U is able to “see” transparent labels.
The LD-100-U is therefore suitable for transparent labels. The LD-100-U is also suitable for completely black labels, something the standard version often has problems with.

Label dispensers

Whether you process a lot of labels in a production environment or in a warehouse, with a label dispenser you speed up the processing of the labels. The manual removal of labels from the roll 1 by 1 for placing takes a lot of labor time. With a label dispenser such as this Labelmate LD-200-RS, you can process the labels up to 5x faster.

You can set up a label dispenser within 30 seconds and then place labels easily and very efficiently. The label dispenser neatly displays the already printed labels and waits until the label has “taken off” and then neatly indicates the next one. This is also referred to as the “peel & present” principle.

The liner is rolled up neatly with this label dispenser, so the workplace remains tidy.

Specifications of the Labelmate LD-100-U

Maximum width: 115 mm
Label length: Minimum 6 mm – Maximum 150 mm
Maximum roll diameter: 220 mm (max 6 kg)
Core diameter: Minimum 40 mm – Maximum 76 mm
Sensor: Photoelectric sensor for detecting difficult labels

Other versions

Labelmate has a very wide range of label dispensers. For example, the LD label dispenser series from Labelmate consists of a number of different versions of which this LD-100-U is developed to work with more difficult labels such as transparant label materials. You will also find the following variants on Business labels:

Basic model
So no extra wide labels are enough with a label width of up to 115 mm? Then work with the Labelmate LD-100-RS.

Broader labels
For labels wider than 115mm, but narrower than 165mm, a wider version is available. This model is offered as the Labelmate LD-200-RS

Stainless steel version
A stainless steel version is available for damp workplaces and food-producing companies. This model is offered as the Labelmate LD-100-SS.

Other models and versions
A stainless steel and / or a wider version of the LD-100-U is also available on request. Please contact our sales department for this model.

Optional for Labelmate label dispencers

The Labelmate label dispensers are offered in their standard form by Businesslabels in the webshop. However, many additional options and variants are available. These are supplied on request, feel free to contact if you want to use 1 or more of the options below. Most of these options are based on “factory installed” which means that they cannot be added later. These options can therefore only be added to the label dispenser at the time of order.

  • Label counter, keep track of the number of labels processed;
  • Preset counter, set the number of labels to be processed and the label dispenser will stop automatically after processing the set number;
  • AWB system for automatic braking of the label rolls and increases the maximum diameter to 265 mm and is standard for a 76 mm core (other core sizes available on request);
  • Roller disc for narrow label rolls, neatly clamps the roll for stable and trouble-free unwinding (can also be added later), available in 200 mm and 300 mm diameter;
  • Increase of the maximum roll diameter to 300 mm;
  • Battery pack for flexible use in warehouse, for example on mobile warehouse carts

Warranty

A well-functioning solution is important, just as important is the reliability of the solution. With Labelmate we know for sure that we are in the right place. Labelmate creates an overcapacity with the used parts. As a result, wear is minimal and the machine never has to go to extremes to function properly.

Labelmate is of such quality that a 3 year warranty* is given on the equipment such as label dispensers.

*The power supply is limited to 1 year.

Labelmate

Labelmate is a producer in Belgium of equipment for processing labels. This includes rewinder, unwinders, label dispensers and label counters. Labelmate distinguishes itself by the high quality of its equipment and is always flexible with special requests. Labelmate is therefore seen by Businesslabels as an ideal collaboration partner for label equipment.
